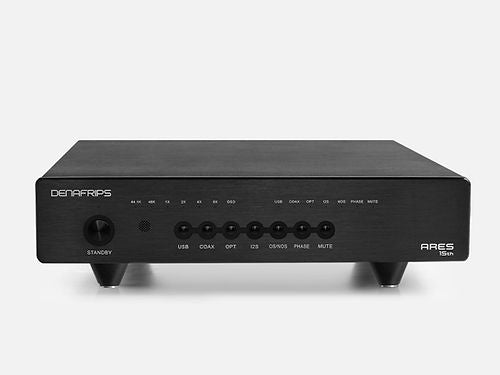

DENAFRIPS Ares 15th R-2R DAC

ARES 15TH Anniversary Edition

• I²S Input
• True NOS R-2R DAC
• Enhanced Power Supply
• Anodised Aluminium Chassis Silver/Black
• Upgraded 12th Anniv

Technical Highlights

• Proprietary R2R + DSD Architecture

• True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)

• Low Thermal Effect, High Precision Hand-Matched 0.01% Resistors

• LPNO Crystal 45.1548MHz, 49.152Mhz

• Low Noise Power Supply

• FIFO Buffer

• Digital Signal Processing via FPGA

• DSD1024, PCM1536 Supports On USB Input

• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU

• Licensed Thesycon USB Driver For Windows Platform

• Driverless On Mac & Linux

DSD

• DSD64-DoP On All Input
• DSD1024* On USB Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB Input

Sampling Mode: Oversampling OS / Non-Oversampling NOS

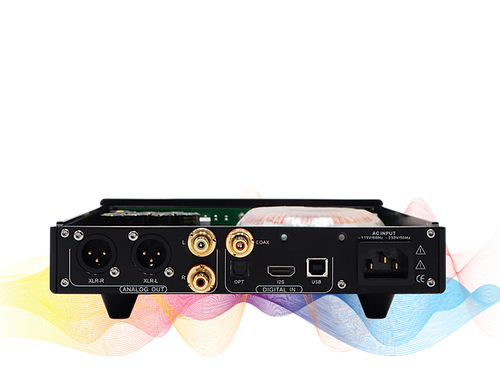

Digital Input

• Coax x 1
• OPT x 1
• I2S x 1
• USB2.0 Type B

Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

Frequency Response: 20-70KHz -3dB

THD+N: 0.002%

S/N Ratio: 115dB

Dynamic Range: >119dB

Stereo Crosstalk: -124dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)

 Fuse: T2A/250VAC. 5x20mm 2A Slow Blow

 Power Consumption: ≤20W

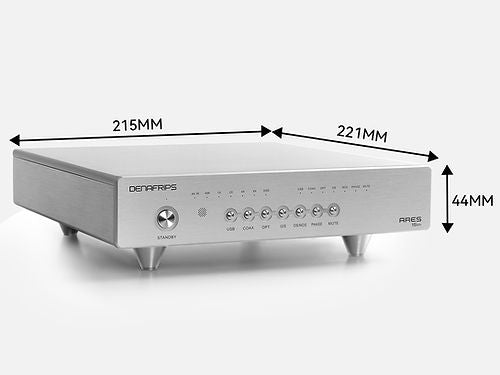

 Dimension: 215W x 221D x 44H mm (Feet +18mm)

 Package Dim: 375 x 330 x 115 mm

 Package Content: DAC & Power Cord. No remote control.

 Weight: 3.5 Kg

 Color: Black / Silver

Warranty: 12 Months
