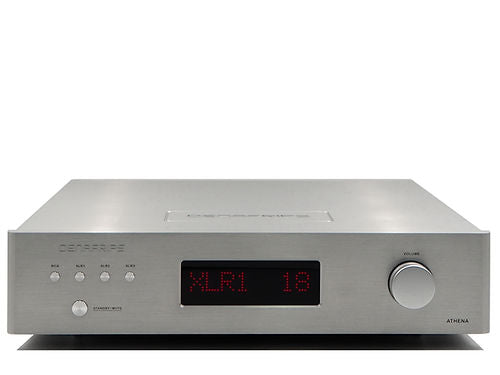

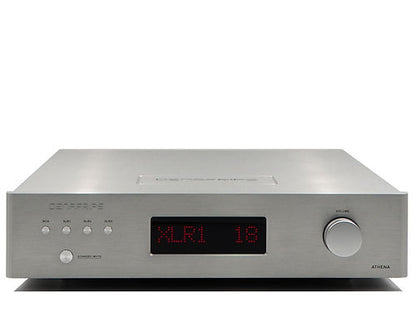

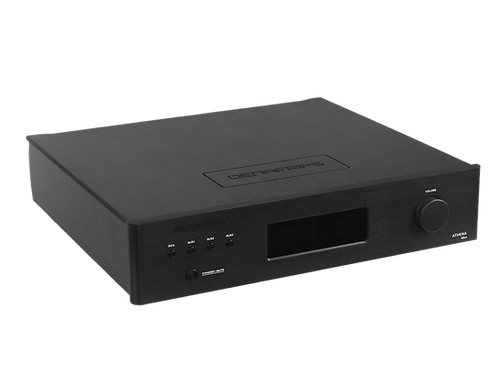

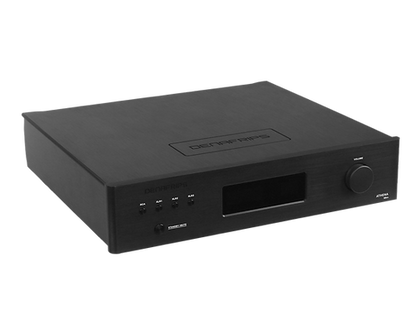

DENAFRIPS ATHENA 12TH PREAMP

Technical Highlights

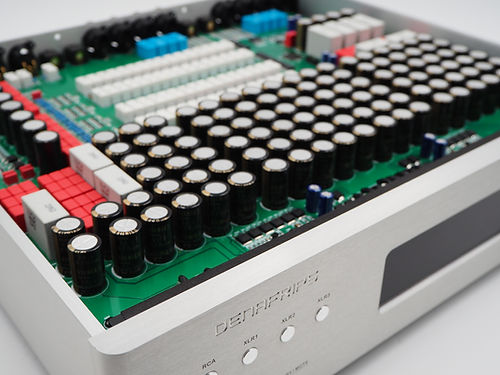

• Pure Class-A, True Balanced, Fully Discrete Flagship Line Stage
• 60 Steps Microprocessor Controlled Relay Based Stepped Attenuator
• Precision Matched Military-Specs Metal Film Resistors & Components with Perfect Channel Balance And Low Distortion
• Remote Controlled

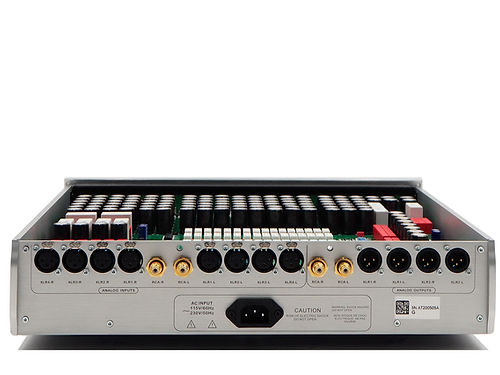

Input

• IN1 - XLR
• IN2 - XLR
• IN3 - XLR
• IN4 - RCA

Output

• RCA at 2.0Vrms
• XLR at 4.0Vrms

Frequency Response: 10-85kHz（-0.3dB）

THD+N: 0.00012%

S/N Ratio: 127dB

Dynamic Range: >121dB

Stereo Crosstalk: -110dB

Input Impedance: 12.2k Ω

Output Impedance: 200 Ω

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: 1W (Idle), 25W (Operational)

Dimension: 430W x 380D x 95H mm

Package Dim: 580 x 560 x 250 mm

Weight: 18 Kg

Color: Black/Silver

Warranty: 12 Months
