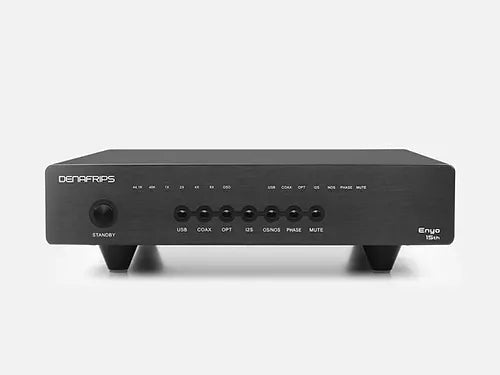

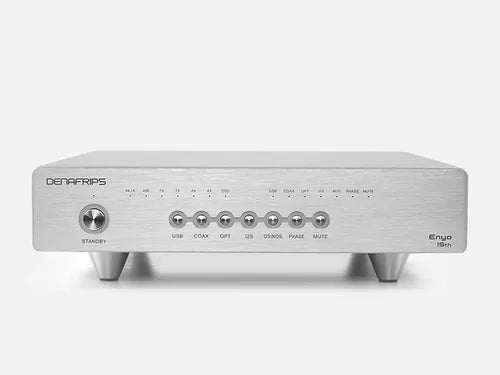

DENAFRIPS Enyo 15TH R-2R DAC

ENYO 15TH Anniversary Edition

• I²S Input
• True NOS R-2R DAC
• Enhanced Power Supply, UPOCC Copper
• Anodised Aluminium Chassis Silver/Black
• Upgraded 12th Anniv. Firmware v1.8

Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Low Thermal Effect, High Precision Hand-Matched 0.01% Resistors
• Low Noise Power Supply
• FIFO Buffer
• Digital Signal Processing via FPGA
• DSD1024, PCM1536 Supports On USB Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux

DSD

• DSD64-DoP On All Input
• DSD1024* On USB Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB Input

Sampling Mode: Oversampling OS / Non-Oversampling NOS

Digital Input

• Coax x 1
• TOSLink x 1
• I2S x 1
• USB2.0 Type B

Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

Frequency Response: 20-70KHz -3dB

THD+N: 0.004%

S/N Ratio: 115dB

Dynamic Range: >119dB

Stereo Crosstalk: -124dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)

Fuse: T2A/250VAC. 5x20mm 2A Slow Blow

Power Consumption: ≤20W

Dimension: 215W x 230D x 45H mm (Feet +18mm)

Package Dim: 375 x 330 x 115 mm

Package Content: DAC & Power Cord. No remote control.

Weight: 3.5 Kg

Color: Black / Silver

Warranty: 12 Months
