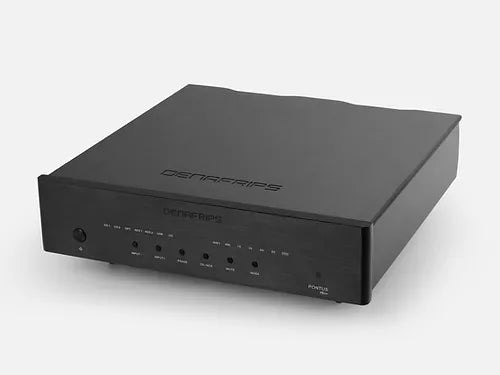

DENAFRIPS PONTUS 15TH R-2R DAC

DENAFRIPS PONTUS 15TH R-2R DAC

Regular price $2,019.00
Regular price Sale price $2,019.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
颜色: 黑色

Pontus15TH Anniversary Edition

  • Enhanced, Fine-Tuned PSU
  • Redesigned Power Supply Module with Dual O-Core Transformers 80VA x 2

  • High-biased constant current delivery to the Digital and Analog circuitry via Silver Cable

  • Upgraded 12th Anniv. Firmware



Technical Highlights

  • Proprietary R2R + DSD Architecture
  • True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
  • Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors
  • Encapsulated Premium Ultra Low Noise Power Supply
  • LPNO Crystal 45.1548MHz, 49.152Mhz
  • Adaptive FIFO Buffer Reclocking
  • New Improved Digital Signal Processing FPGA Code
  • DSD1024, PCM1536 Supports On USB & I²S Input
  • Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
  • Licensed Thesycon USB Driver For Windows Platform
  • Driverless On Mac & Linux
  • Dual AES/EBU Input Supports
  • Sharp/Slow Filters Option
  • I²S Pinout Configuration
  • I²S DSD Channel Swap Configuration



DSD

  • DSD64 (DoP) on Coax/AES/Opt Input
  • DSD1024* On USB & I²S Input Only

PCM

  • 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
  • 1536kHz* On USB & I²S Input



Sampling Mode: Non-Oversampling NOS / Oversampling OS

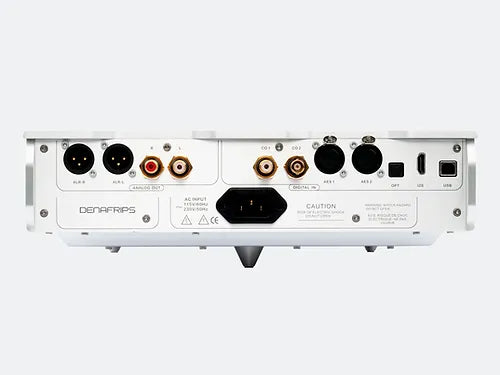

Digital Input

  • Coax 1 via RCA
  • Coax 2 via BNC 75 Ω
  • OPT x 1
  • AES/EBU x 2
  • USB2.0 Type B
  • I²S via HDMI LVDS



Analog Output

  • RCA at 2.0Vrms, 625 Ω
  • XLR at 4.0Vrms, 1250 Ω



Frequency Response: 20-70KHz -3dB

THD+N: 0.002%

S/N Ratio: 120dB

Dynamic Range: >121dB

Stereo Crosstalk: -110dB



AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

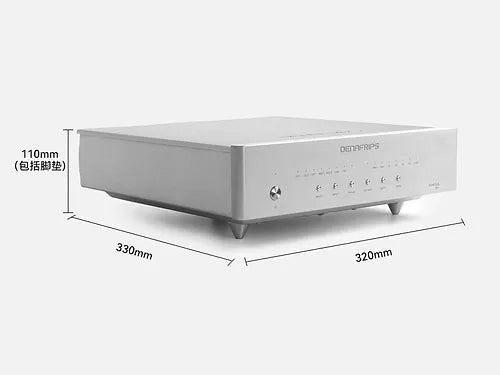

Dimension: W320 x D330 x H110 mm (Including feet)

Package Dim: 470 x 440 x 175 mm

Package Content: DAC only. No power cord & remote control.

Weight: 12.5 Kg

Color: Silver / Black

Warranty: 12 Months





I²S FAQ



I²S

I²S has no industry standard. If you would like to use the I²S connection, the I²S pinout matching with the source (DDC/Transport/Streamer) has to be configured correctly. Mismatch of I²S pinout may result in static/noise output. The excessive noise output level may damage the loudspeakers/headphone drivers.



Suggestion of I²S matching with the source, i.e. DDC/Transport/Streamer

1. Connect the I²S cable (good quality HDMI cable <3ft/1m)
2. Turn down the volume (audible, minimal)
3. Play a familiar music (PCM first, followed by DSD)
4. Run through the I²S setting of the DAC, 000-111
5. One of the modes should match with the source for both PCM and DSD playback.

It's recommended to go through the Audio Tone Test to make sure the L/R channel, in phase/out of phase correctness.



Warning
Please note that the RJ45/HDMI ports of DENAFRIPS DAC are not typical network/multimedia RJ45/HDMI ports. They are purpose-built I²S ports. Please do not connect it to the typical multimedia HDMI port (i.e. Bluray player/TV etc) / Ethernet network.
