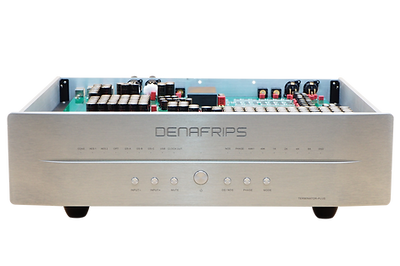

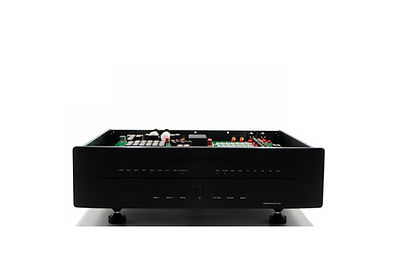

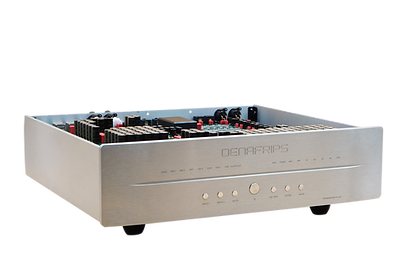

DENAFRIPS TERMINATOR PLUS 12th-1 R-2R DAC

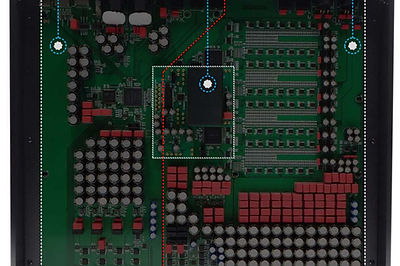

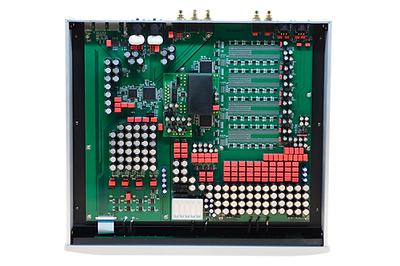

Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Matched Precision Thin Film 0.005% R-2R Network Arrays

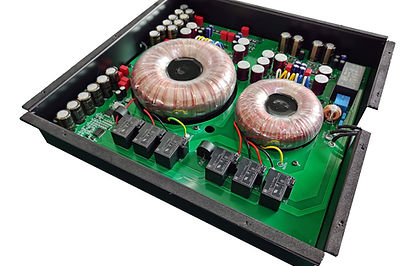

• Encapsulated Flagship Ultra Low Noise Power Supply
• High Purity Gold+Silver+Copper Alloy AC Transformers
• High-end Oven Controlled Crystals OCXO
• Adaptive FIFO Buffer Reclocking
• Direct Digital Signal Processing FPGA
• DSD1024, PCM1536 Supports On USB & I²S Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux
• Dual AES/EBU Input Supports
• Sharp/Slow Filters Option
• I²S Pinout Configuration
• I²S DSD Channel Swap Configuration
• Upgraded 12th Anniv. Firmware

DSD

• DSD64 (DoP) on Coax/AES/Opt Input
• DSD1024* On USB & I²S Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB & I²S Input

Sampling Mode: Non-Oversampling NOS / Oversampling OS

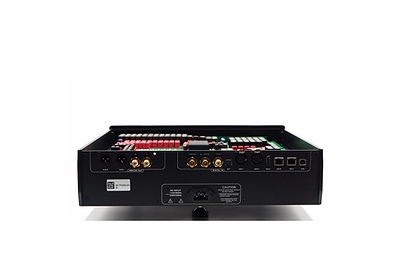

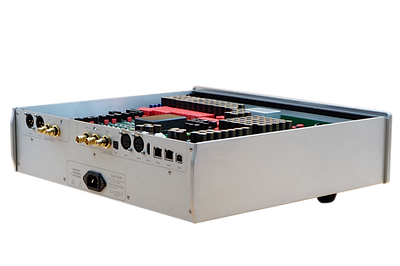

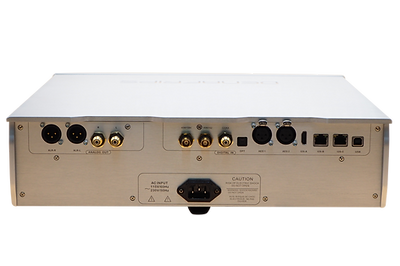

Digital Input

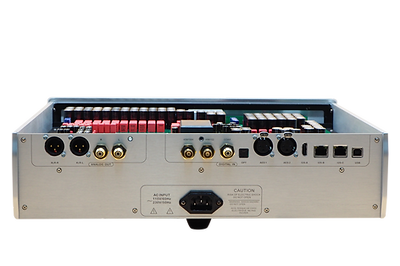

• Coax via RCA
• TOSLink x 1
• AES/EBU x 2
• USB2.0 Type B
• I²S via HDMI LVDS
• I²S via RJ45 LVDS
• I²S via RJ45 LVCMOS

Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

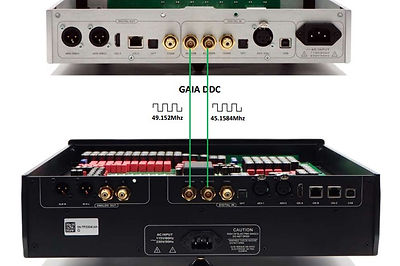

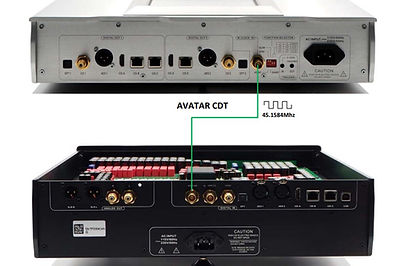

Clock Output BNC 75Ω

• 44.1KHz, 48KHz
• 22.5774Mhz, 24.576Mhz
• 45.1548MHz, 49.152Mhz

Frequency Response: 20-40KHz -0.2dB

THD: 0.05%(RCA), 0.002%(XLR)

S/N Ratio: 110dB(RCA), 120dB(XLR)

Dynamic Range: >132dB

Stereo Crosstalk: -110dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 430W x 380D x 125H mm (Includes Footers)

Package Dim: 610 x 570 x 275 mm

Package Content: DAC only. No power cord & remote control.

Weight: 19.0 Kg

Color: Silver / Black

Warranty: 12 Months

• I²S FAQ

  I²S

  I²S has no industry standard. If you would like to use the I²S connection, the I²S pinout matching with the source (DDC/Transport/Streamer) has to be configured correctly. Mismatch of I²S pinout may result in static/noise output. The excessive noise output level may damage the loudspeakers/headphone drivers.



  Suggestion of I²S matching with the source, i.e. DDC/Transport/Streamer
  ​
  1. Connect the I²S cable (good quality HDMI cable <3ft/1m)
  2. Turn down the volume (audible, minimal)
  3. Play a familiar music (PCM first, followed by DSD)
  4. Run through the I²S setting of the DAC, 000-111
  5. One of the modes should match with the source for both PCM and DSD playback.
  ​
  It's recommended to go through the Audio Tone Test to make sure the L/R channel, in phase/out of phase correctness.



  Warning
  Please note that the RJ45/HDMI ports of DENAFRIPS DAC are not typical network/multimedia RJ45/HDMI ports. They are purpose-built I²S ports. Please do not connect it to the typical multimedia HDMI port (i.e. Bluray player/TV etc) / Ethernet network.



  Need help?
  Please reach out to us at support@rondoson.com . We are happy to assist you.
