Up2stream Amp 2.1 Bluetooth 5.0 Stereo & Subwoofer Amplifier Board

Features：

Build Your Wireless Streaming Audio System: Add WiFi, Airplay, Spo t1fy Connect and Bluetooth 5.0 wireless capability to your DIY audio projects. Build a wireless speaker, wireless streamer or convert your tranditional stereo system into advanced wireless multiroom streaming system.

Bring Multiroom Capabilities to Your Next Project:

Our wide range of Up2Stream boards are small enough to fit in all kinds of audio projects. Add an amplified streamer inside speaker boxes, or tiny receiver boards inside home theater amps. Their size and powerful connectivity brings new life to vintage gear and new ideas for your next DIY build. *All Arylic products are compatible with each other for

multiroom installations.

Create Powerful Wireless 2.1 Speakers And Amplifiers:

Up2Stream Amp 2.1 wireless 2.1 amplifier board has a powerful 50W x2 output with 4Ω passive speakers at 24V on the stereo channels and a 100W sub output with 2Ω passive subwoofers at 24V, Hear and feel the striking, powerful stereo sound and deep bass all around your house.

Accepts 12V-24V power input and 4Ω-8Ω speakers, 2Ω-8Ω subwoofer.

Position your Subwoofer Anywhere: You can place your subwoofer anywhere in your house and wirelessly stream deep bass throughout the house.

Brilliant Sound Streamed Directly From Your Favorite Providers: Spoti, Amazon Music, Tidal, Qobuz, Deezer, Napster, TuneIn, Internet Radio, iHeart Radio, QQ Music, QQ FM. The Up2stream Amp 2.1 connects directly to your online streaming providers to play high quality audio, avoiding Bluetooth bottlenecks and compression.

Specifications：

Wireless network: IEEE802.11 b/g/n 2.4G

Ethernet: Single 10/100M RJ45

Bluetooth: 5.0,SBS/AAC

USB Host: Play USB music

THD+N: <0.03%，@1kHz/1W/24V/4Ω

Speaker Impedance: 4-8Ω

Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

Decoding: Up to 24bit/192kHz

Protocols: AirPlay,DLNA,UPnP,Spotify Connect,Qplay

Dimensions: 124*100*25mm

Optional: IR Remote Controller

Packages Included：

1x UpStream AMP 2.1

1x 6pin analog connector

1x Screw Driver

1x WiFi Antenna

3x Knob Cover

1x User Manual

 2.1 Amplifier with Powerful 50W X2 + 100W Sound Output

The Up2stream Amp 2.1 is a 2.1 amplifier that specialized wireless streaming for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology. With wifi, Bluetooth 5.0, Airplay, Spotify Connect, also DLNA and UPnP protocols for wireless control. It's worth mentioning that the sound quality via wifi streaming is without any compression and no distance limitation as long as your wifi signal is strong enough, which upgrades your home audio system to be more usable and enjoyable to listen to. Wireless Subwoofer

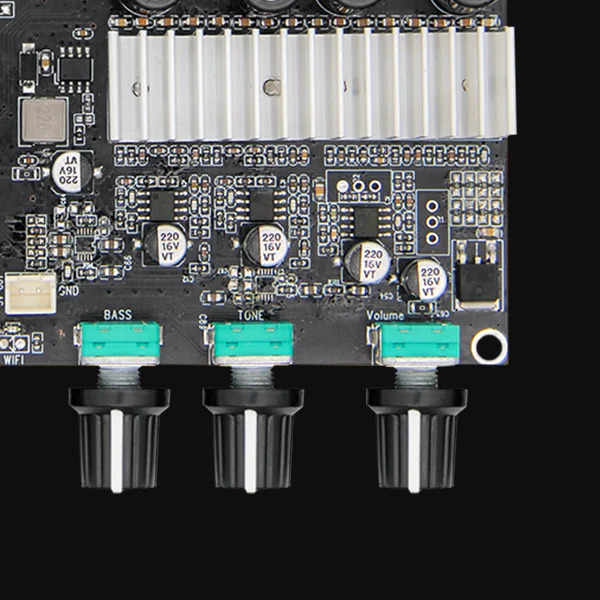

 Rotary Knob Control

Besides adjusting the volume in real-time, you can also change your Treble and Bass while listening to your music through the corresponding knob. Just press and hold the button, it's easy!

Powered Subwoofer-Party Essentials

Up2stream Amp 2.1 equipped with 50W*2 stereo pair + 100W high-powered subwoofer. The sound output is immaculate and stunning, definitely enough to keep you partying at home all day long. Let’s make some noise!

                                   Multi-zone Subwoofer for your House

No matter where you are in your house, you can always take out your phone to play a song for you or your family. Easily to Group all your subwoofers and let the house shake tonight!

Precisely EQ Adjustment

When it comes to audio products, especially subwoofers, players are very interested in EQ control. Up2stream Amp 2.1 can adjust Treble and Bass via remote control, app, and knobs, but the best way is to use our ACPWorkbench tuning tool, which adjusts EQ precisely. If you are someone who likes to customize your audio effect or enjoys musical variety, this is a feature you will love!

                                   Wireless Connectivity

Streaming your audio all the way by Wifi, Bluetooth 5.0, DLNA, UpPnP, Airplay, Sp ot1fy Connect.

Support Multiple Audio Sources

Supprt streaming local music, NAS, USB Stick and line in devices wirelessly. Play your favorite music from anywhere.All Music You Like

Huge music resources supported like Spot1 fy, Pandora, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheart Radio, Napster etc. Except online music, you also can play local music by NAS, USB storage where you have collected your favorite song for years.

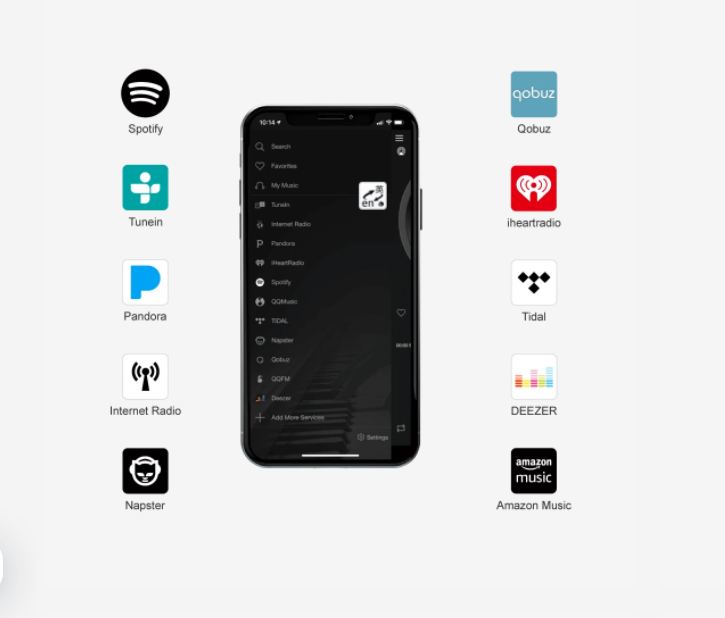

Free iOS & Android App

Our App called “4stream” that is compatible to your iOS & Android system. All the features can be simply controlled by App. And you also can receive the notification for our regular online firmware update automatically in our App.

→Arylic Up2Stream AMP2.1 User Manual
