    Up2Stream Amp V4 Wireless Audio Amplifier Board with DAC

    Up2Stream Amp V4 Wireless Audio Amplifier Board with DAC

    $79.00
    $79.00 $79.00
    Sale Sold out
    Taxes included. Shipping free at checkout.
    PLUG

    Product Features:
    - The Up2Stream AMP v4 is a WiFi and Bluetooth 5.0 stereo/bi-channel amplifier board that can be applied to an existing regular sound system to make it wireless-enabled, and is also an all-in-one solution for DIYers to make a personalized wireless sound system.
    - The Up2Sream AMP v4 is switchable between stereo and mono modes, with stereo mode providing up to 50W L&R channels and mono mode providing up to 50W L&R channels. Mono mode will mix the L&R channels and provide a single channel with a maximum power of 100W. 100W channel.
    - Once connected to your home network, using our 4Stream app, you can play music from your phone, NAS, USB drive, or online streaming services like Spot1f y, Deezer, Tidal, Qobuz, and more.
    - With multiple devices, a wireless multi-room sound system can synchronize the same music in each room or play different music in different rooms.

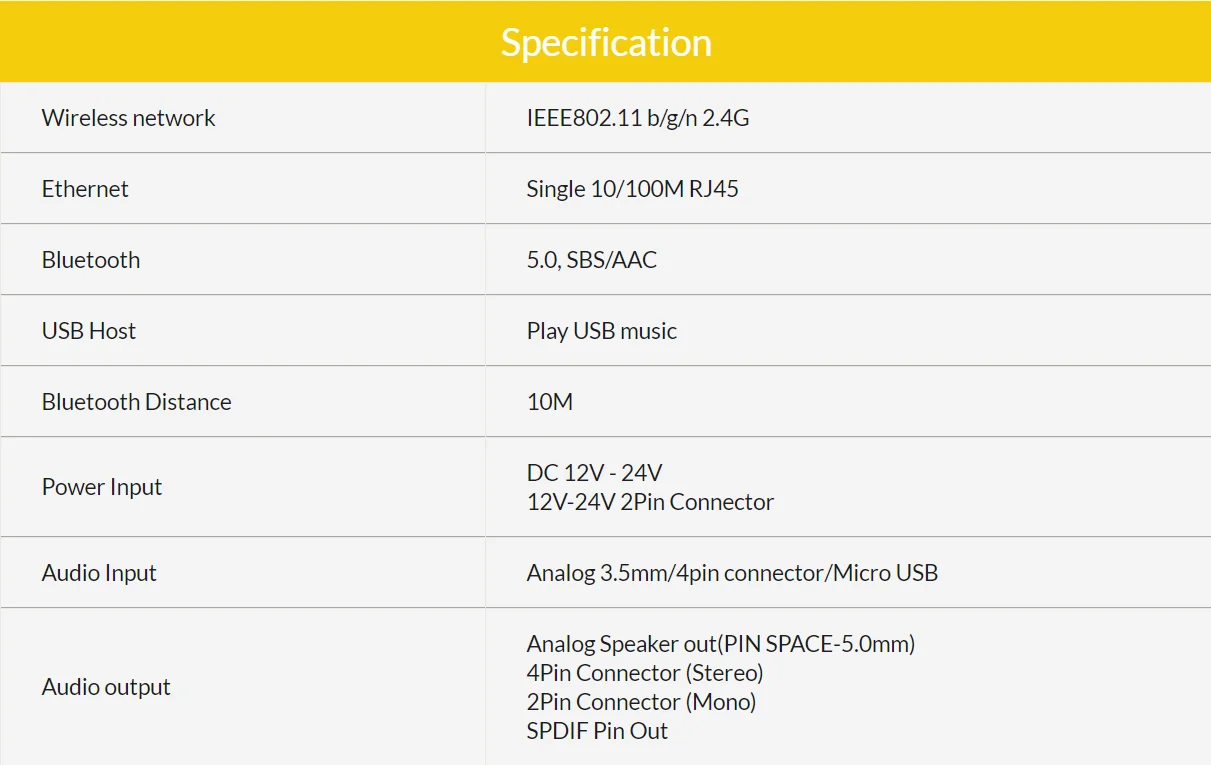

    Specifications：

    Wireless network: IEEE802.11 b/g/n 2.4G

    Ethernet: Single 10/100M RJ45

    Bluetooth: 5.0,SBS/AAC

    USB Host: Play USB music

    THD+N: 0.03%，@1kHz 50W+50W 24V-4Ω

    Speaker Impedance: 4-8Ω

    Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

    Decoding: Up to 24bit/192kHz

    Protocols: AirPlay,DLNA,UPnP,Spotify Connect,Qplay

    Dimensions: 110*80*22mm

    Optional: IR Remote Controller

    Packages Included：

    1x Up2Stream AMP v4

    1x 4Pin Analog Connector

    1x Screw Driver

    2x Antenna

    1x Users Manual

       DIY Bluetooth Amplifier Board for your Stereo System

     Still running cables around your audio system? Want to play music from the internet? Up2Stream AMP v4 Wifi & Bluetooth Amplifier Board is perfect for you. You can use AMP v4 to easily build your own wireless stereo system. AMP v4 can provide you with 50Wx2 power to 4ohm speakers and you can stream online music from many famous online music services like Spotify, Deezer, TuneIn and more.

    50W*2 Stereo Wifi & Bluetooth Amplifier Board

    PC support and Tuning Tool
    Supports connection to PC through micro USB to act as external DAC, also you can use our ACPWorkbench to customize the different frequency and equalizer settings for your favorite music.

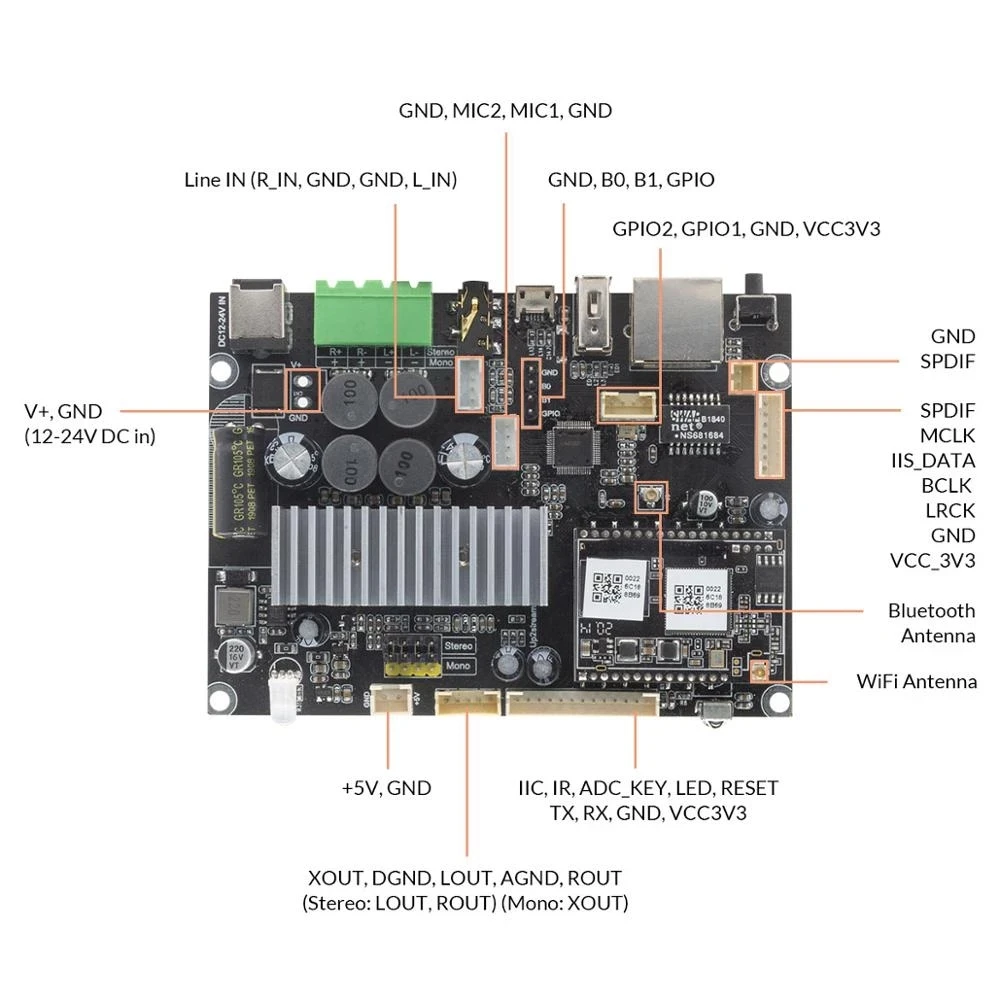

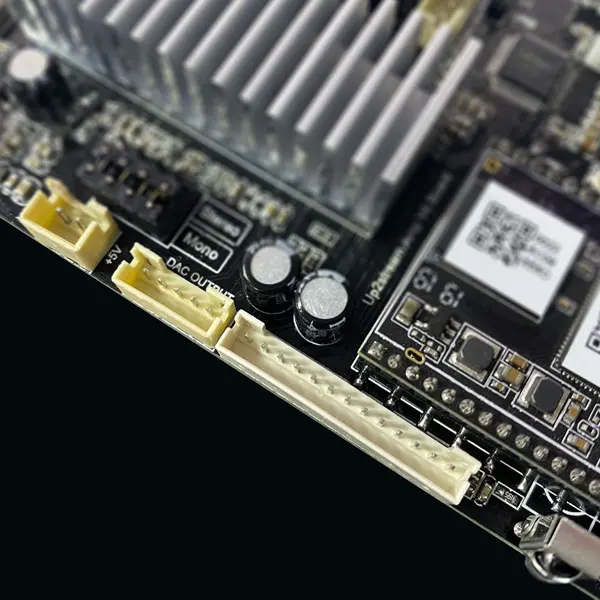

    More Extension

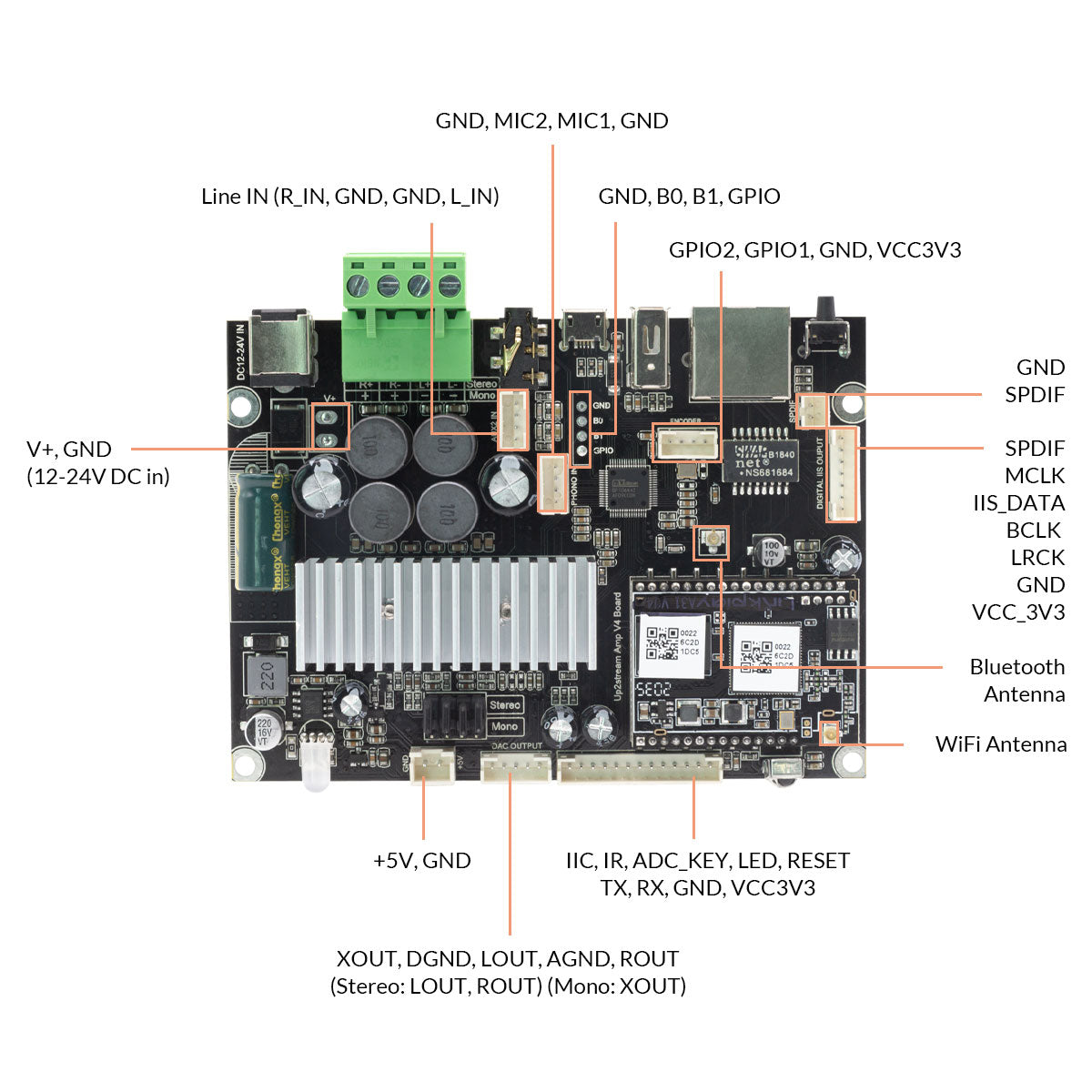

    There are both Digital output (I2S) and Analog output (DAC) for you DIYers to be able to connect other amplifiers to extend the music power.

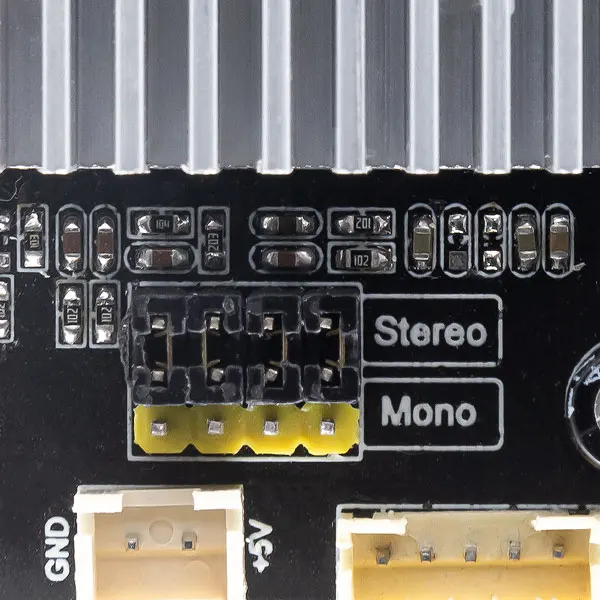

    Easy Switch Mode

    You can easily change AMP Mono output mode from Mono to Stereo or vice versa, just see what is best fit for you.

    DIY Your Multiroom Audio

    When you have speakers in multiple rooms, you can hook up multiple AMP v4 to form a multiroom audio system. You can play the same music to all the rooms at the same time in sync. This can let your guess enjoy the booming music all over your house when you host a house party.

    Brilliant Immersive Stereo Sound

    Capable of delivering brilliant stereo sound to produce an immersive audio experience that makes you feel like you are in the scene. Powerful room filled with immersive stereo sound will change your music experience.

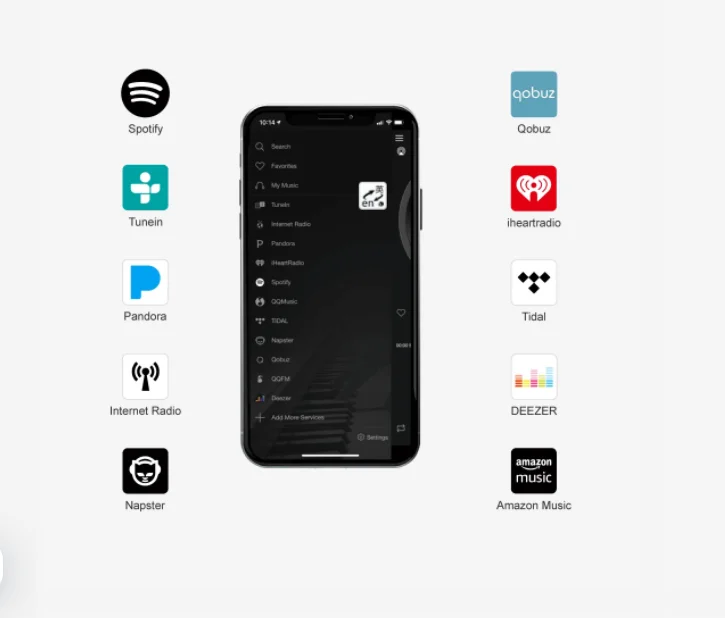

    Musics You Like

    Huge music resources supported like Spot1f y, Pandora, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheart Radio, Napster etc. Except online music, you also can play local music by NAS, USB storage where you have collected your favorite song for years.

    Wireless Connectivity

    Streaming your audio all the way by Wifi, Bluetooth 5.0, DLNA, UpPnP, Airplay

    Free iOS & Android App

        Our App called “4stream” that is compatible to your iOS & Android system. All the features can be simply controlled by App. And you also can receive the notification for our regular online firmware update automatically in our App.

    What is the difference between Up2stream Amp Mono and Up2stream Amp V4?

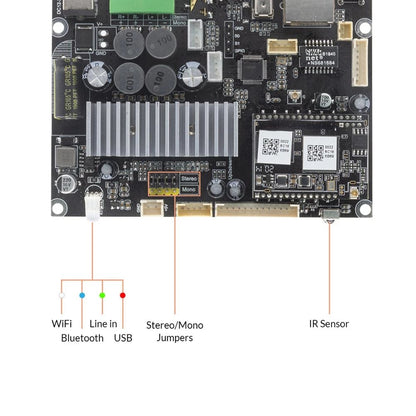

    Actually these two are the same DIY audio amplifier module, but we have pre-set the mode jumpers on the audio module for the consumer's convenience. For example, if you want to buy a stereo amplifier board, we have pre-set the stereo mode for you. If you want to buy a Mono amplifier board, you will get the Mono mode pre-set when you receive it. Of course, if you want to switch modes later, it's very easy, just follow the instructions in the manual to move the jumper.

    -What is the difference between Up2stream Amp V4 and Up2stream Amp V3?

    There is a difference with hardware update, which supports more features with our ACPWorkbench Audio effect tools. Like adjust L/R balance, L/R EQ settings etc. And we add more DIY pins like I2S and DAC output, so you have more options to connect more DIY modules.







    →Arylic Up2Stream AMP V4 User Manual
